HOLLYBURN GS MK3

THIS IS WHAT THE WORLD IS FOR, MAKING ELECTRICITY

TOP SPEED: 50 MPH

RANGE: 45 MILES

CURB WEIGHT: 102 LBS

In engineering there’s a simple formula to developing excellence, it’s time + discipline = quality. Over the past 12 years we’ve built Rovers under the mantra of keeping what works and discarding what doesn’t, and the result is the Hollyburn GS MK3. Born from a machine that literally pioneered a whole new market segment, the GS MK3 stands alone at the top in both quality and performance. The MK3 is ready and willing to go wherever, whenever, fast. The only thing it needs is a rider willing to take it there.

Max Speed: 50 mph (80 km/h)
Max Range: 45 miles per charge (72 km)
Max Power: 12,000 W
Continuous Power: 5,000 W
Max Amps: 200 A
Max Torque: 70 lb-ft (95 Nm)
Motor: ZM3-HV High Voltage Premium Efficiency 3-Phase Brushless DC
Controller: Accelerated Systems BAC2000 w/ Bluetooth
Controller Protection: IP67 Waterproof
Final Drive: 36T 13T, #428 RK Racing Chain
Nominal Battery Voltage: 72 V
Battery Amp Hours: 28.8 Ah
Battery Capacity: 2073 Wh (2.07 kWh)
Battery Pack Protection: IP67 Waterproof
Estimated Battery Life: 50,000 Miles
Charger: Digital Smart Charger, Portable Outboard, 110 V - 240 V Universal Input
Charge Time: 4 hrs (fast charger option), 6 hrs (standard charger)
Chassis: Magna-Shell ST6-XL®, Aluminum & Stainless Steel Construction
Chassis Armor: Crusher Six-Point®
Front End Folding Linkage: Z-Stack 6 Quick Release ®
Front Brake: Magura MT7 Pro 4-Piston w/ 180mm MDR-C Rotor
Rear Brake: Magura MT7 Pro 4-Piston w/ 160mm MDR-C Rotor
Regenerative Brake: Active on Coasting
Wheels: Douglas Racing AlumiLite 6061
Front Tire: Kenda Scorpion 145/70-6
Rear Tire: Kenda Scorpion 145/70/6
Length (End to End): 56”
Wheelbase: 42”
Width (at Handlebars): 26”
Width (at Deck): 14.75”
Height (Overall): 48”
Height (Deck to Handlebars, Standard Sizing): 37”
Height (Deck to Handlebars, XL Sizing): 39”
Height (Folded): 20.5”

STEALTH CARBON

$8,499
METALLIC ORANGE

$8,499
CUSTOM PAINT

$8,699

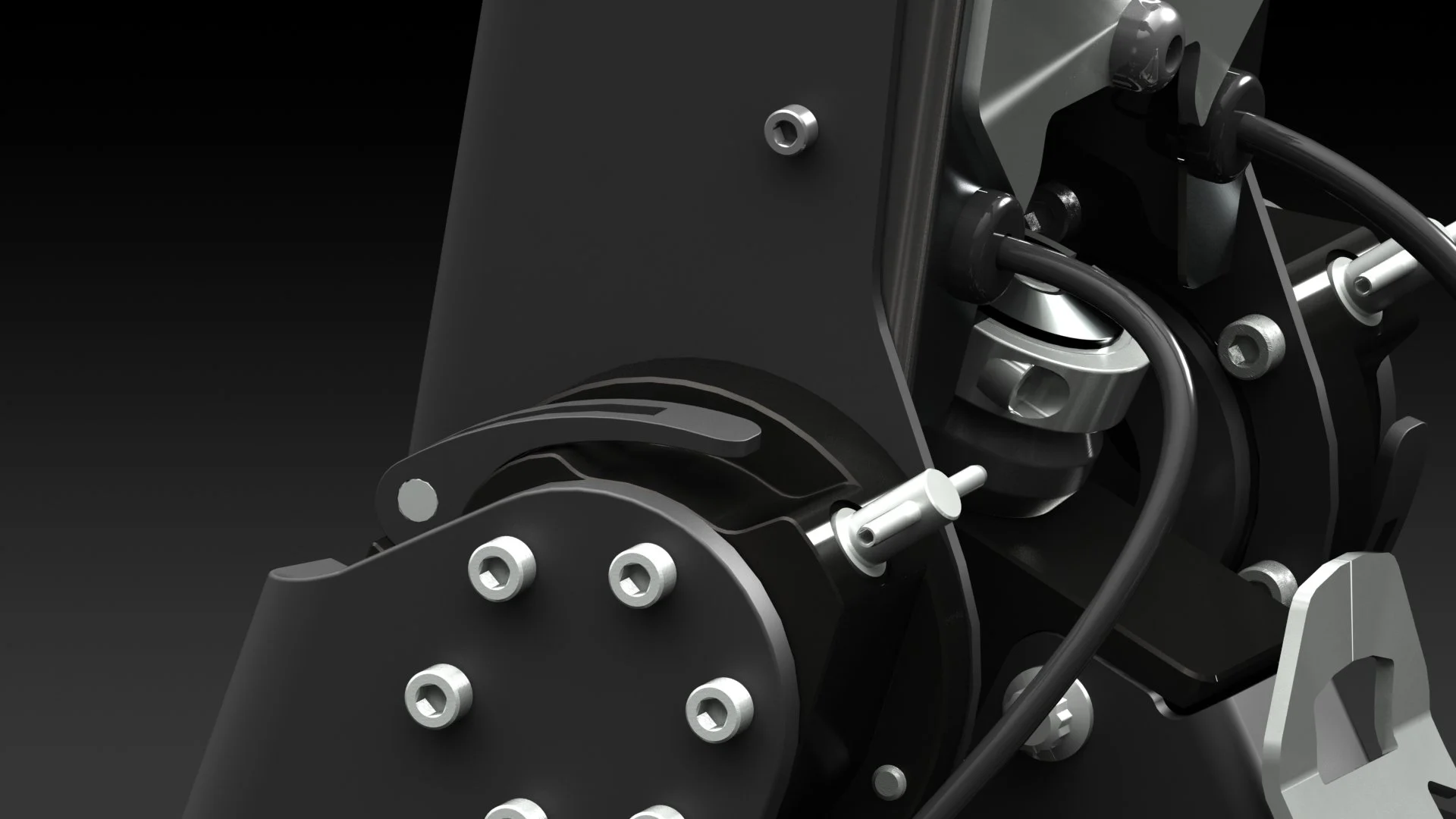

QUICK RELEASE FOLDING FRONT-END

No tools required to open and close the Stem Assembly. The Stem Pivot Blocks now incorporate a cam-lock quick release system that’s both easy operate and super reliable.
MAGURA MT7 PRO BRAKES + REGEN

4-piston braking at its best. MT7 Pro’s provide superior braking power and excellent modulation. This combined with regenerative motor braking and you’ve got the control you need to harness the power of the GS.
DUAL-BEAM LED HEADLIGHT TECHNOLOGY

Backcountry night riding requires serious light power, and the GS has you covered. The GS headlights incorporate 2 high performance OSRAM LED’s (4 total), producing a total light output of 2200 earth-scorching lumens.
AEROSPACE-GRADE CHASSIS

Plastic is for posers. The Chassis of the GS is extremely strong and durable, yet weighs only 11 lbs. This is achieved through the use of 5052 aluminum blended A607 structural steel inlays in strategic high-load locations. The result is an ultra-lightweight chassis capable of withstanding massive punishment.

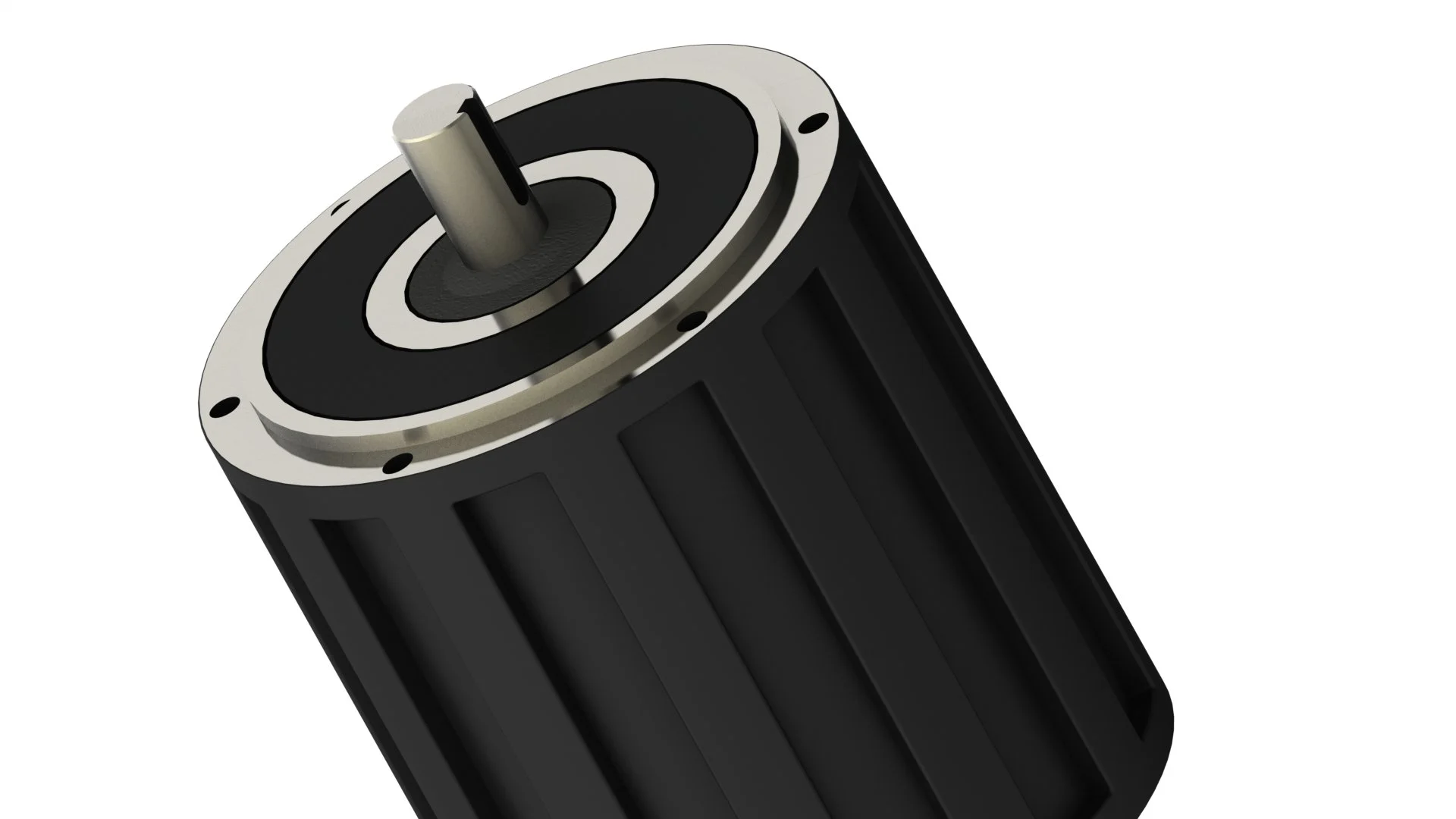

12,000 WATT ZM3-HV® BRUSHLESS MOTOR

The ZM3-HV brushless motor is designed for 72 V nominal operation with an astounding 90% peak efficiency band all the way up to 80 amps. Most motors in a vehicle this size fall off in the ballpark of 40 amps, meaning that high performance riding is either inefficient or nonexistent. The ZM3-HV motor can shred at 40+ mph all day long.
ASI BAC2000 200 AMP PURE SINE CONTROLLER WITH FOC

The GS utilizes one of the most advanced and reliable controllers commercially available. The BAC2000 is capable of producing 200 A @ 72 V of raw power, all while being completely under your control. Designed with the latest in Field-Oriented Vector Control (FOC) with over 800 programmable data points via Bluetooth, this controller is the business.

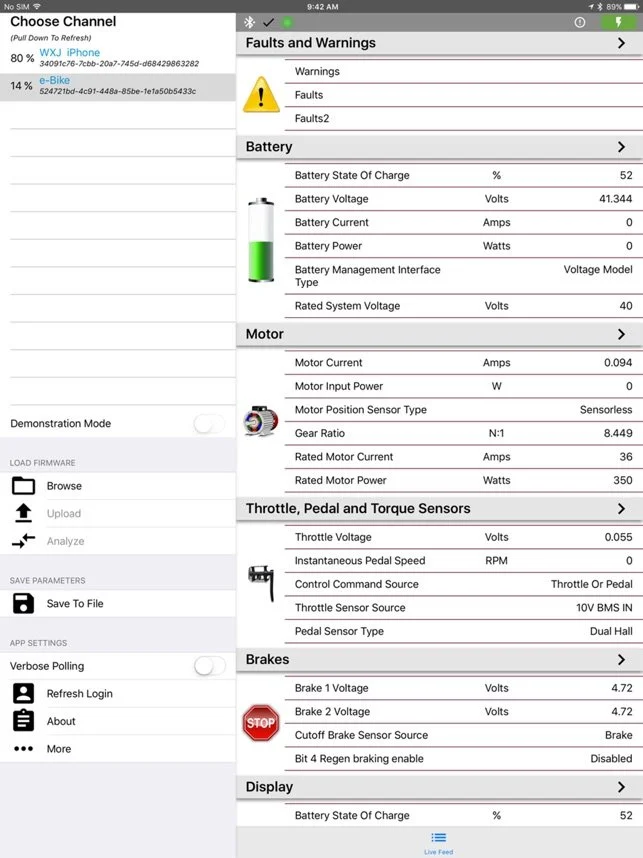

FULL WIRELESS BLUETOOTH CONTROL

For advanced users, the power is all yours. Access the full scope of your GS’s control system via bluetooth on your phone or tablet.
IP66 WEATHERPROOF

The GS is fully weather protected to IP66 standards, meaning that it's ready for action in all weather conditions, including rain and snow.
