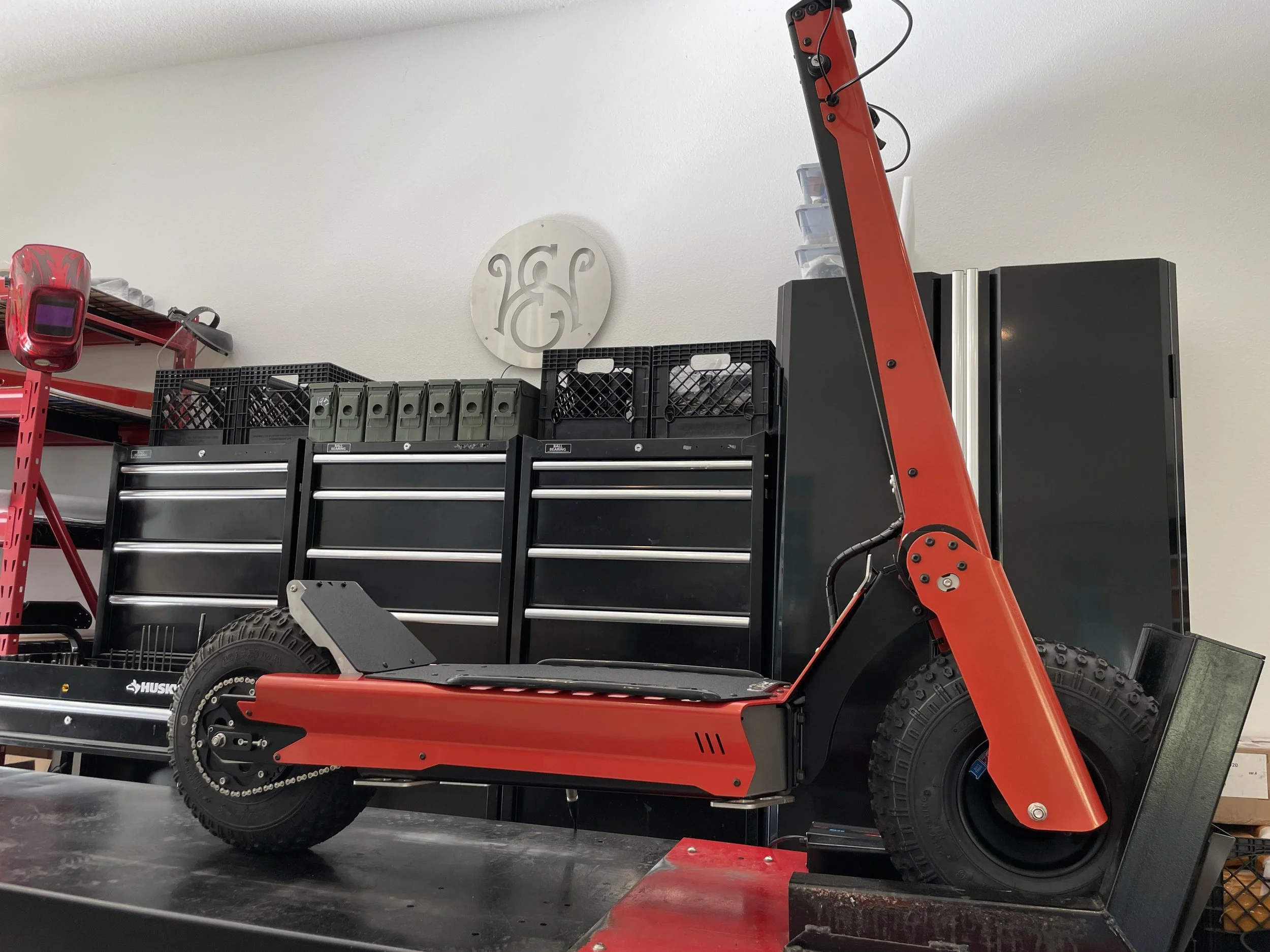

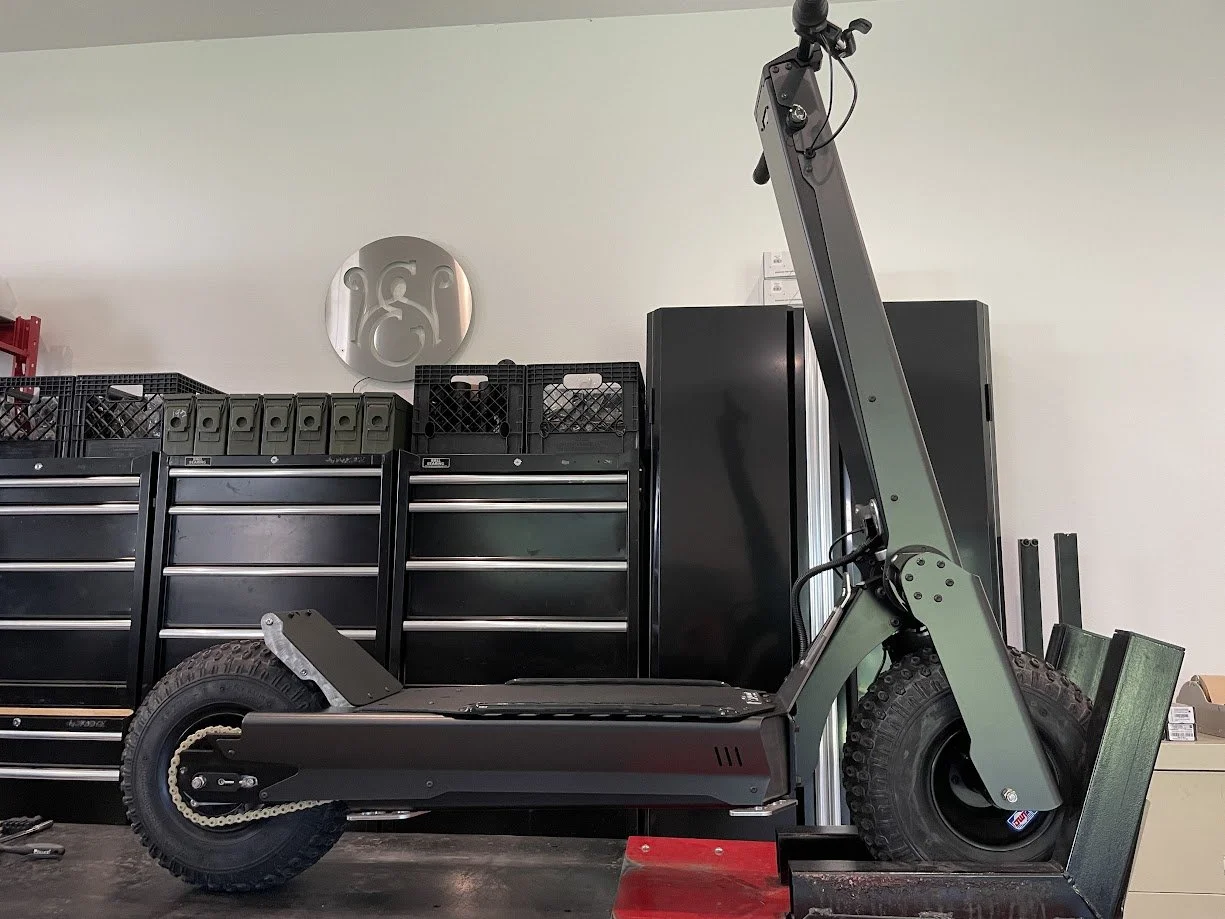

RAWW

SHIMMY SHIMMY YAWW

TOP SPEED: 52 MPH

RANGE: 40 MILES

CURB WEIGHT: 86 LBS

The RAWW is all about the experience. Built to be unbridled confidence under your feet, it’s do-it-all attitude blurs the line between a spec-hungry powerhouse and a nimble trail-whip. This perfect blend of power and playfulness is made possible through a novel aluminum unibody construction that’s both rigid and light while yielding the precise architecture for its hyperlight racing powertrain. In other words, this thing is lean and mean. So whether you’re shredding backcounty or just out for a weekend coffee run, it’s gonna be real.

TRIM OPTIONS

ULTRALIGHT $5,399

Top Speed: 46 mph (74 km/h)
Range: 32 miles (52 km)
Weight: 86 lbs (39 kg)
Max System Power: 3,700 W
Max Motor Amps: 190 A
Max Torque: 62 lb-ft (84 Nm)
Charge Time: 3 hrs (smart charger option), 5 hrs (standard charger)
Motor: ZM-90 high voltage premium efficiency permanent magnet AC, active air cooled
Controller: Premium efficiency 190 Amp, 3-phase AC pure sine-wave

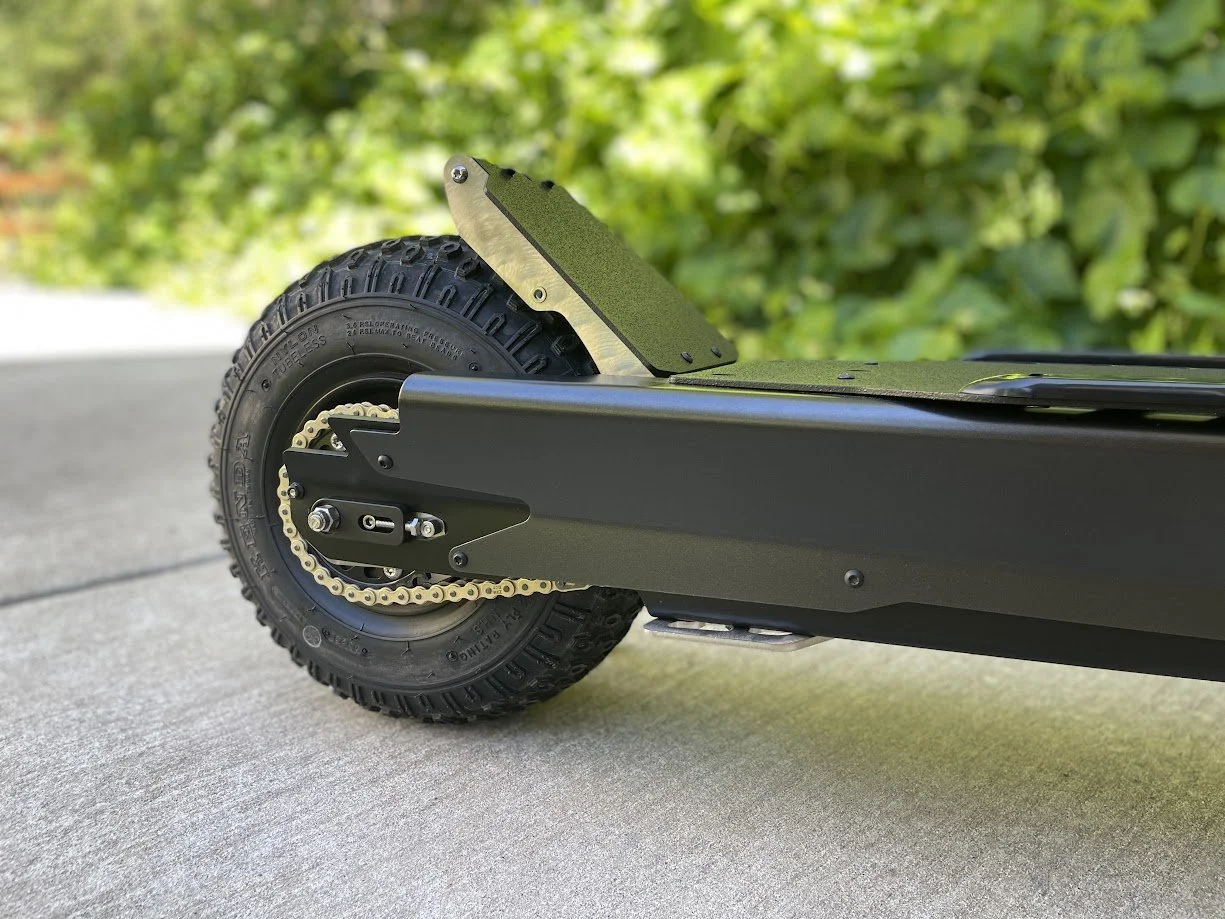

Final Drive: 42T 14T, #428 RK Racing Gold Chain
Battery Li-Ion 60 V (67 V Max), 25 Ah
Chassis: Ultralight Unibody, 5052 aluminum w 304 stainless steel inlays
Front End Folding Linkage: Z-Stack 6 Quick Release ®
Front Brake: Magura MT5 HC 4-piston, MDR-C rotor 160 mm
Rear Brake: Magura MT5 HC 4-piston, MDR-C rotor 160 mm
Wheels: Douglas Racing AlumiLite 6061
Front Tire: Kenda Scorpion Tubeless 145/70-6
Rear Tire: Kenda Scorpion Tubeless 45/70/6
- IP66 weatherproof construction
- 6” underbody clearance
- Full underbody rock plating
- Front and rear lift points for easy transport
- Internal cable routing
- Premium aluminum & stainless steel construction
- Stainless steel fasteners
- Battery state of charge display
- 1/4-20 accessory mount at Handlebar Block
- Handmade in the USA

ENDURO $5,799

Top Speed: 52 mph (84 km/h)
Range: 40 miles (48 km)
Weight: 91 lbs (41 kg)
Max System Power: 4,500 W
Max Motor Amps: 190 A
Max Torque: 70 lb-ft (95 Nm)
Charge Time: 3 hrs (smart charger option), 5 hrs (standard charger)
Motor: ZM-90 high voltage premium efficiency permanent magnet AC, active air cooled
Controller: Premium efficiency 190 Amp, 3-phase AC pure sine-wave
Final Drive: 42T 14T, #428 RK Racing Gold Chain
Battery Li-Ion 72 V (84 V Max), 25 Ah
Chassis: Ultralight Unibody, 5052 aluminum with 304 stainless steel inlays
Front End Folding Linkage: Z-Stack 6 Quick Release ®
Front Brake: Magura MT5 HC 4-piston, MDR-C rotor 160 mm
Rear Brake: Magura MT5 HC 4-piston, MDR-C rotor 160 mm
Wheels: Douglas Racing AlumiLite 6061
Front Tire: Kenda Scorpion Tubeless 145/70-6
Rear Tire: Kenda Scorpion Tubeless 145/70/6
- IP66 weatherproof construction
- 6” underbody clearance
- Full underbody rock plating
- Front and rear lift points for easy transport
- Internal cable routing
- Premium aluminum & stainless steel construction
- Stainless steel fasteners
- Battery state of charge display
- 1/4-20 accessory mount at Handlebar Block
- Handmade in the USA

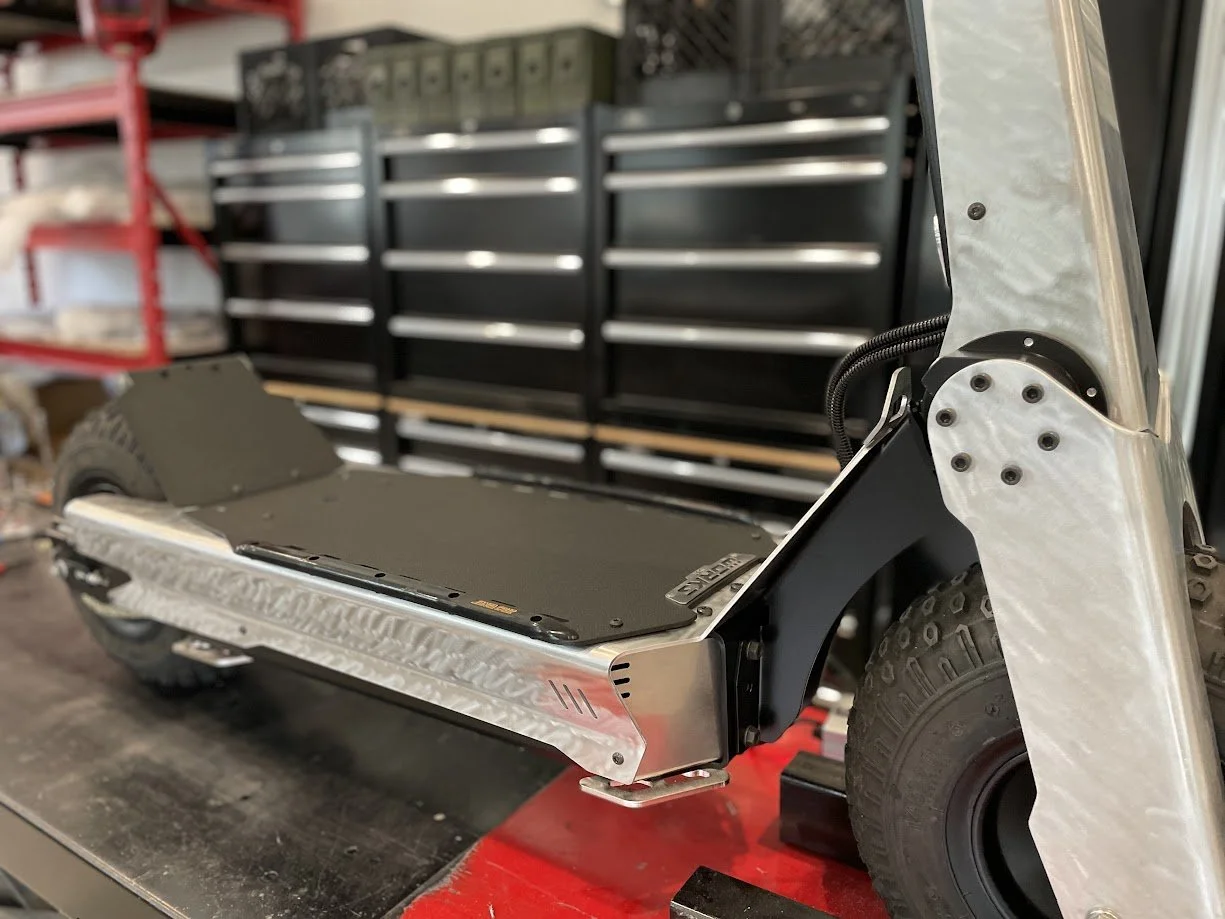

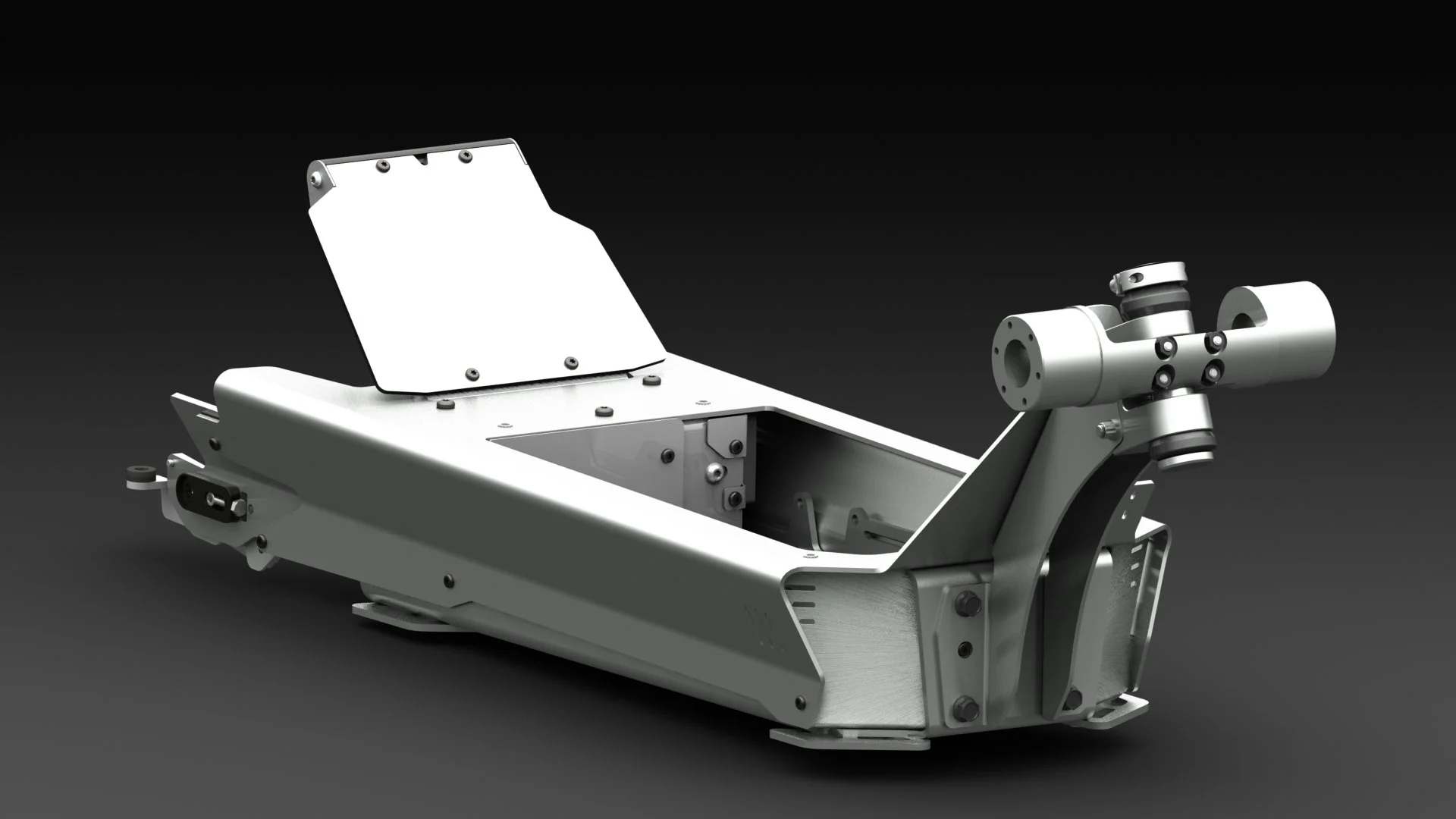

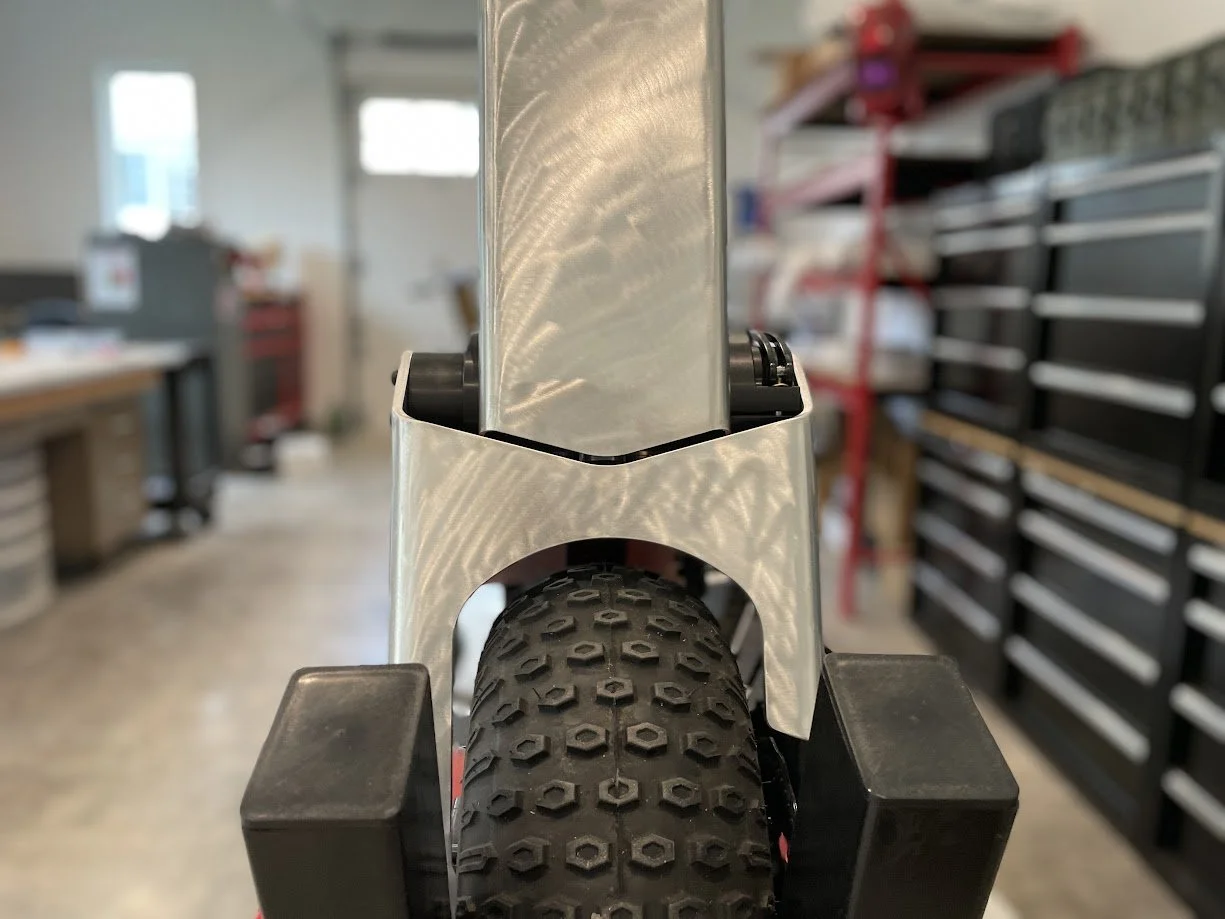

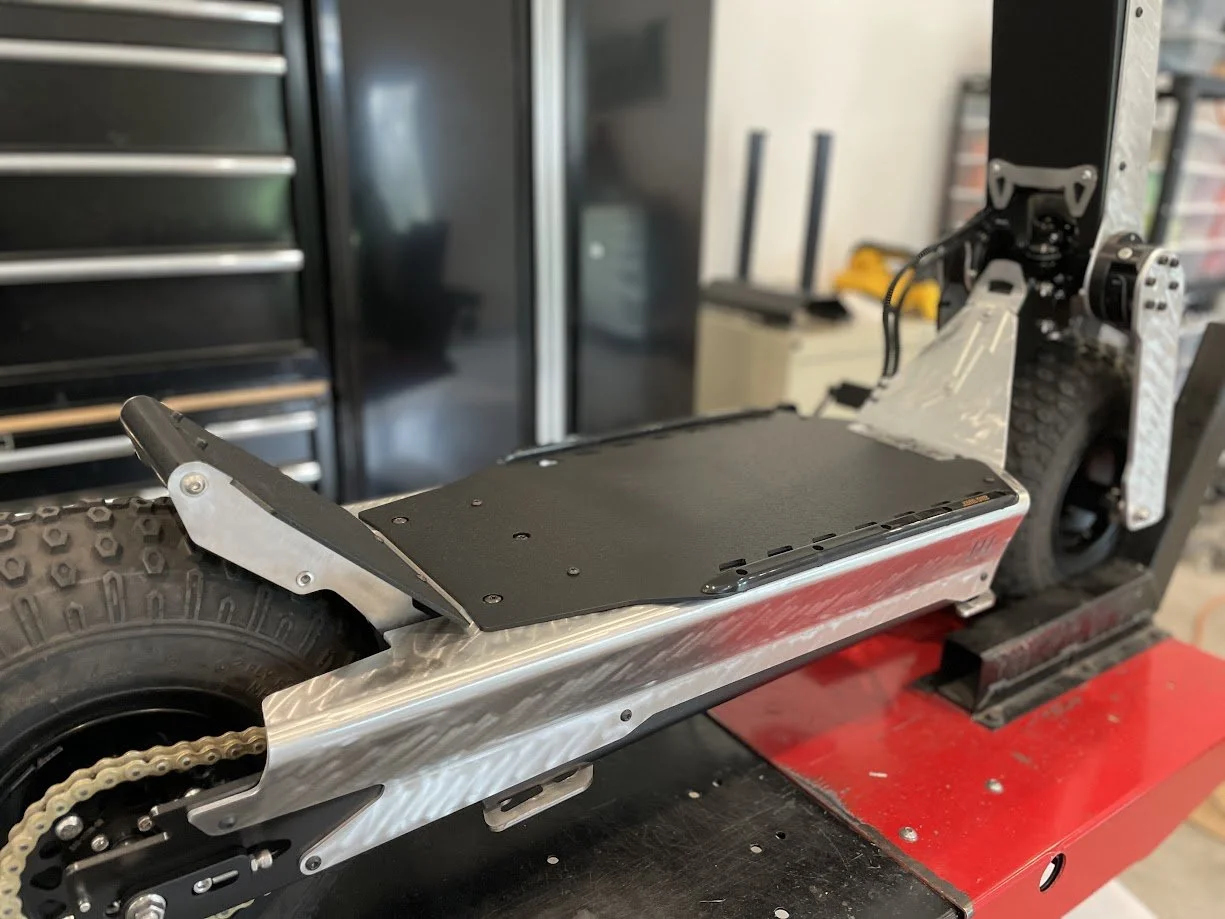

UNIBODY CHASSIS CONSTRUCTION

The RAWW chassis utilizes a novel unibody construction that’s both extremely light and extremely strong. The upper shell is 1/8” thick 5052 aluminum, and the lower shell is 3/16” 5052 aluminum.

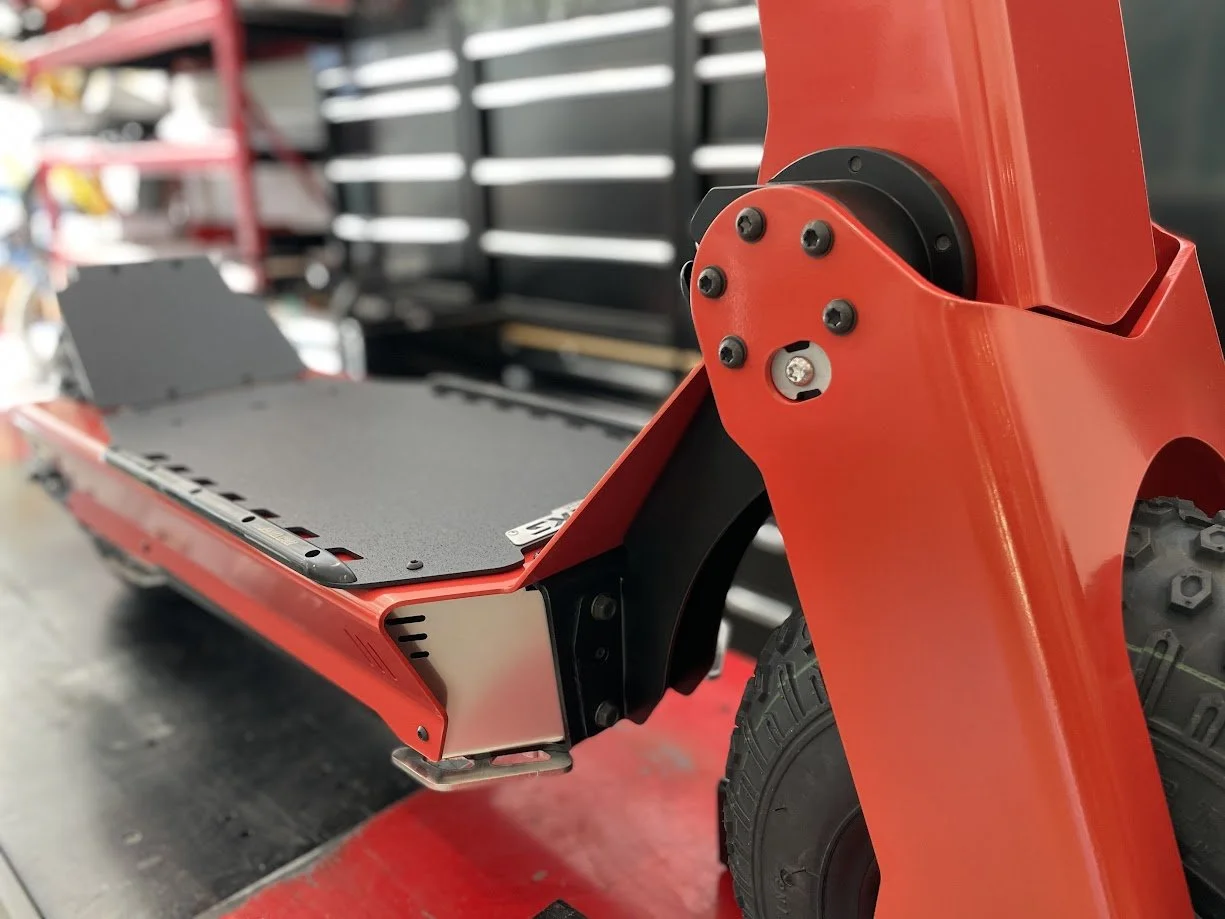

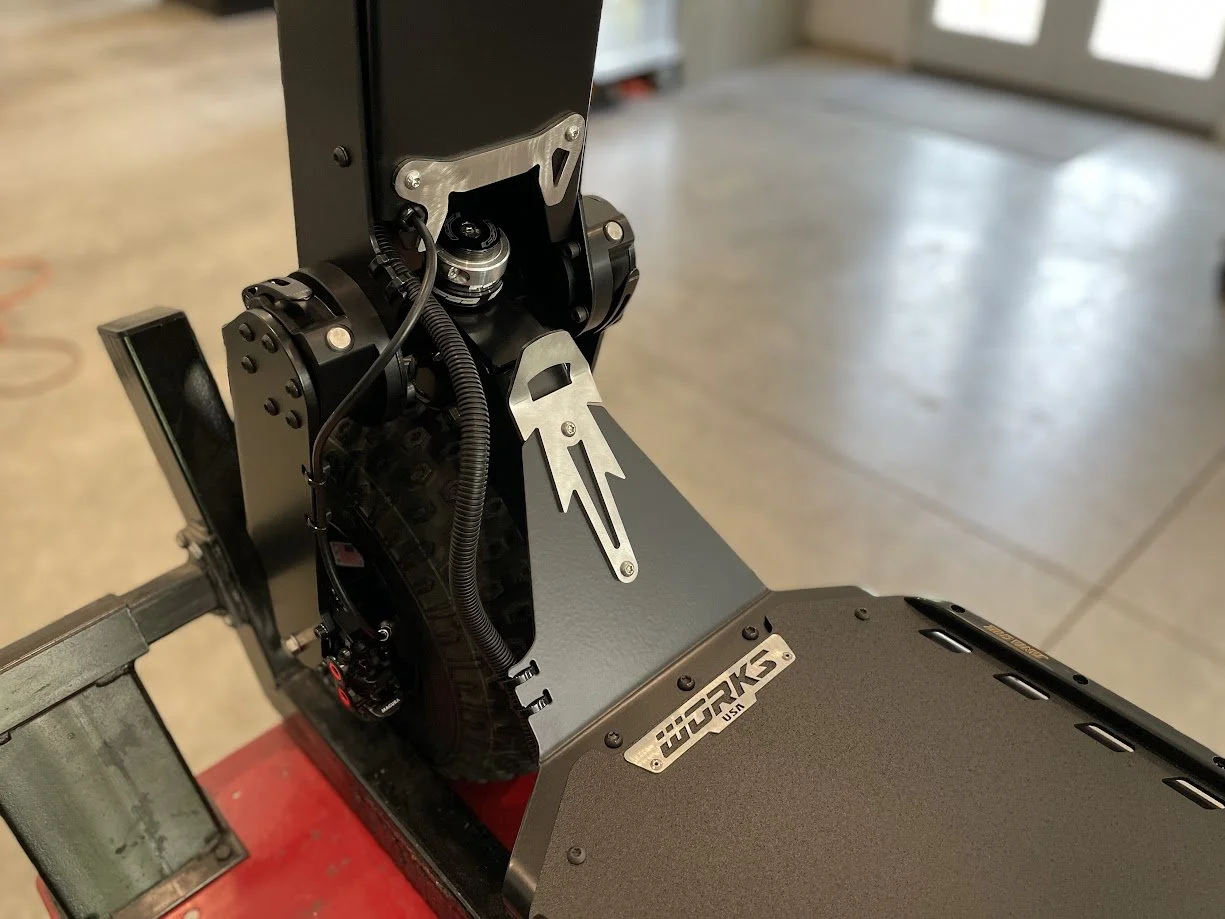

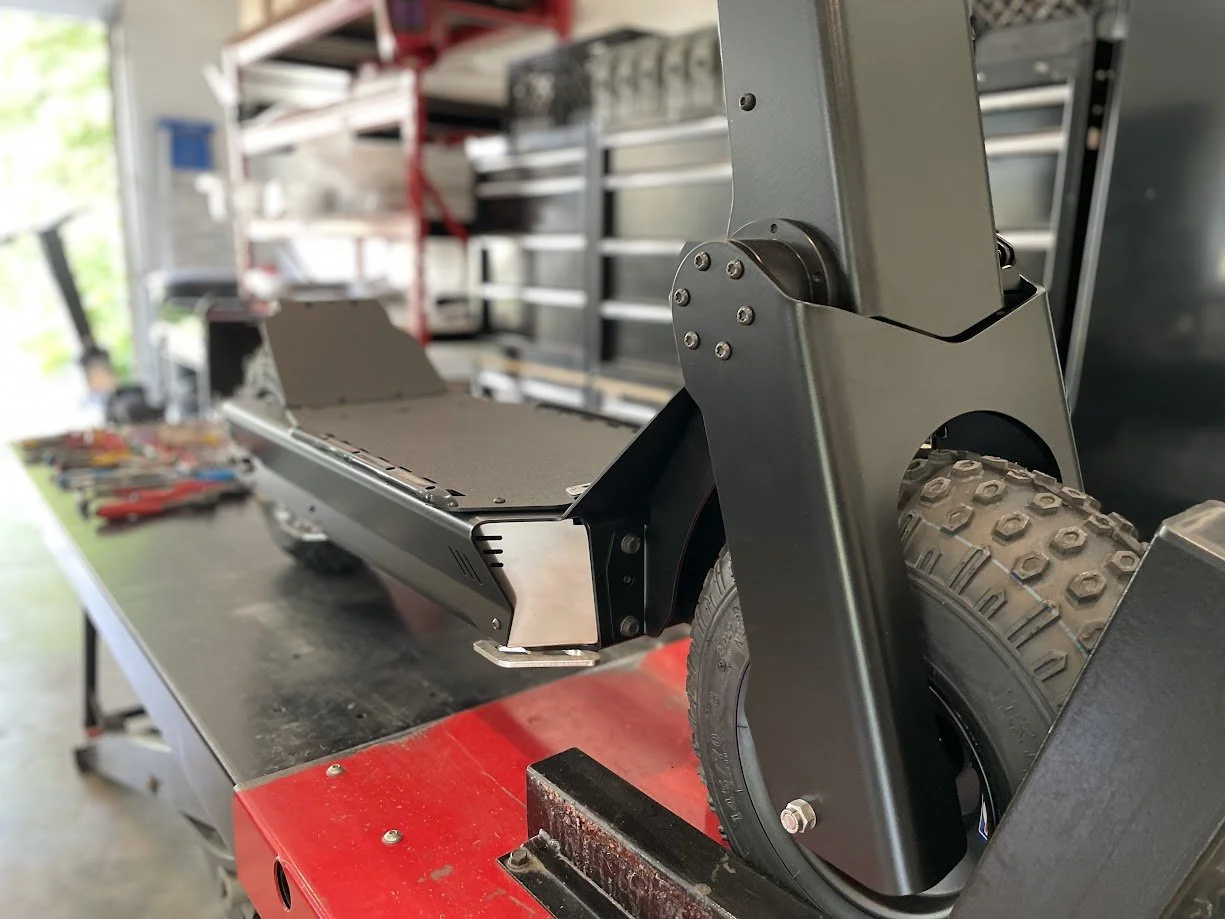

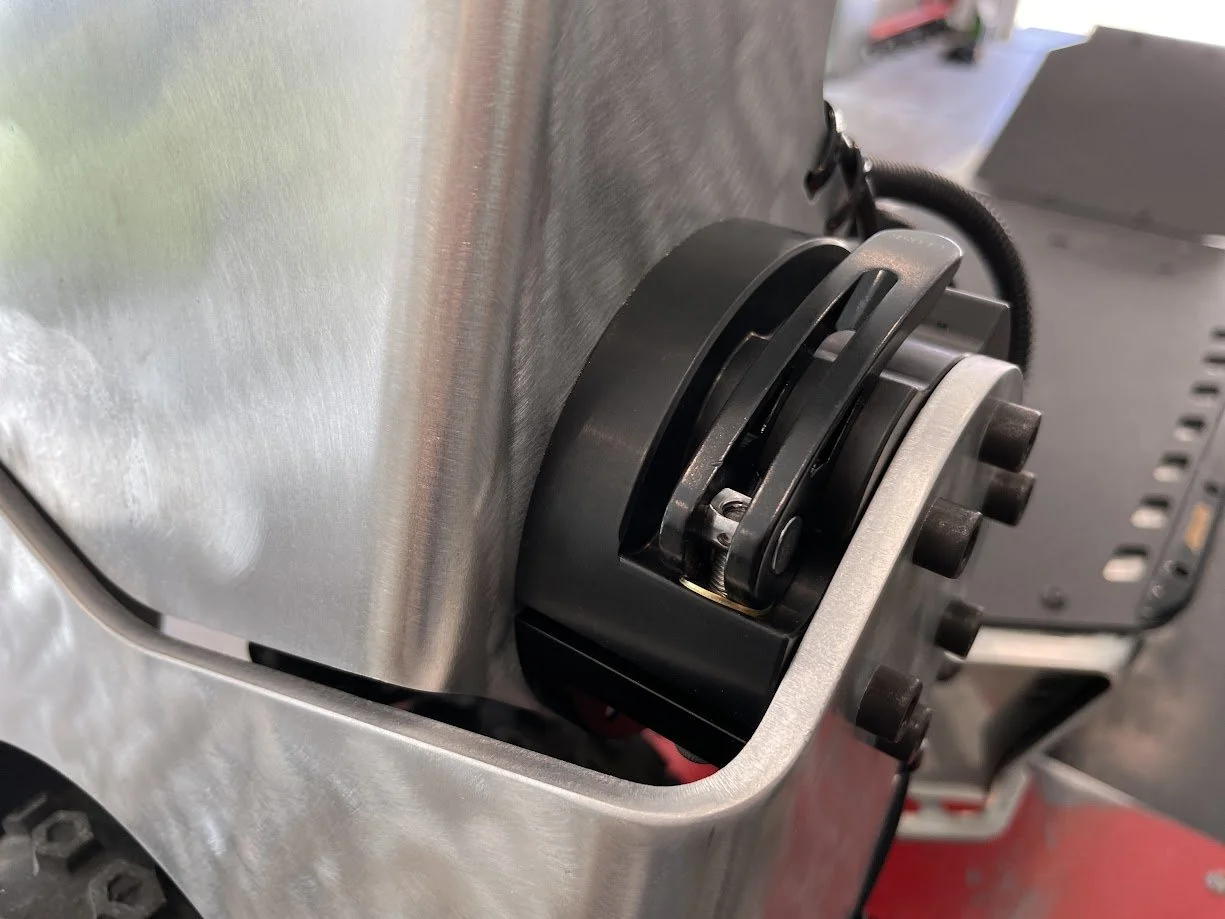

QUICK RELEASE FOLDING FRONT-END

No tools required to open and close the Stem Assembly. The Stem Pivot Blocks incorporate a cam-lock quick release system that’s both easy operate and highly reliable.

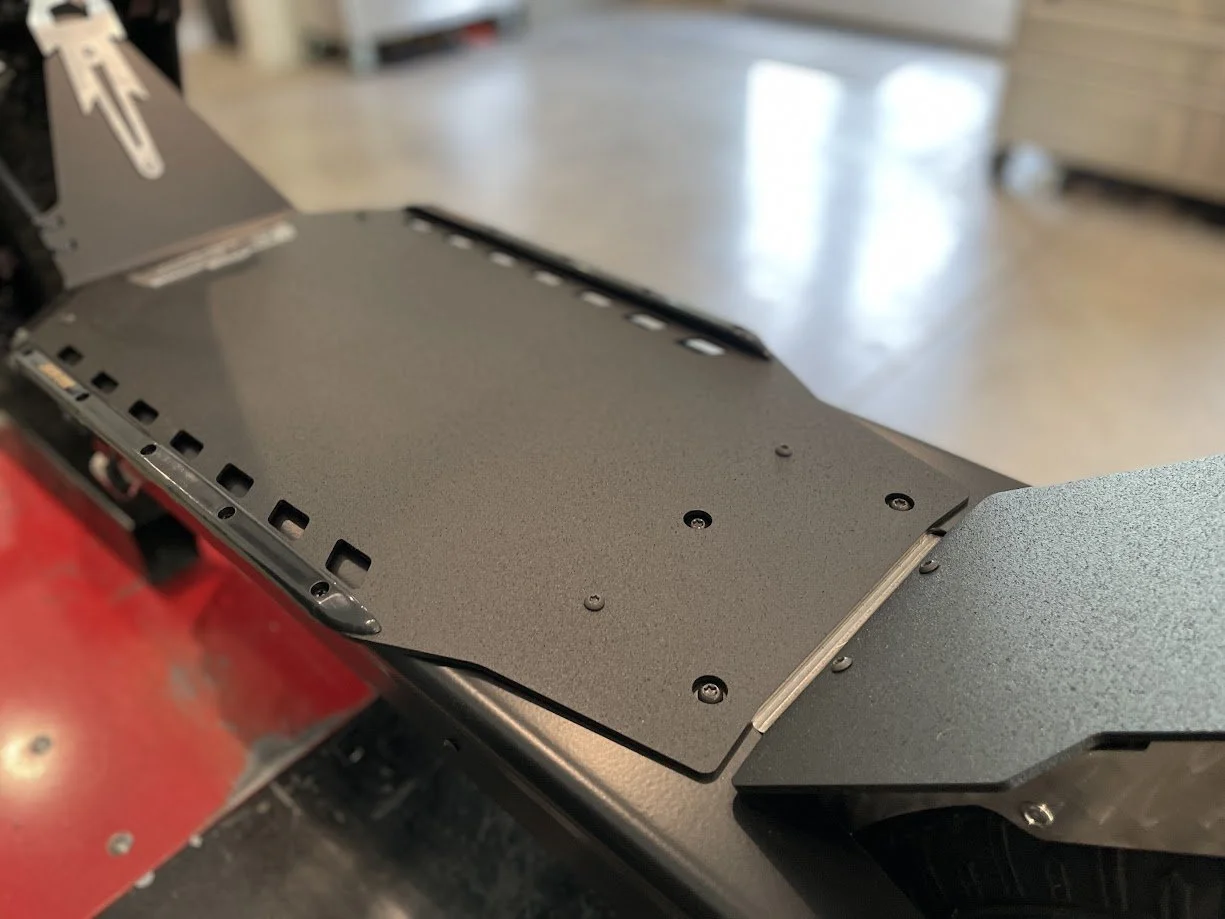

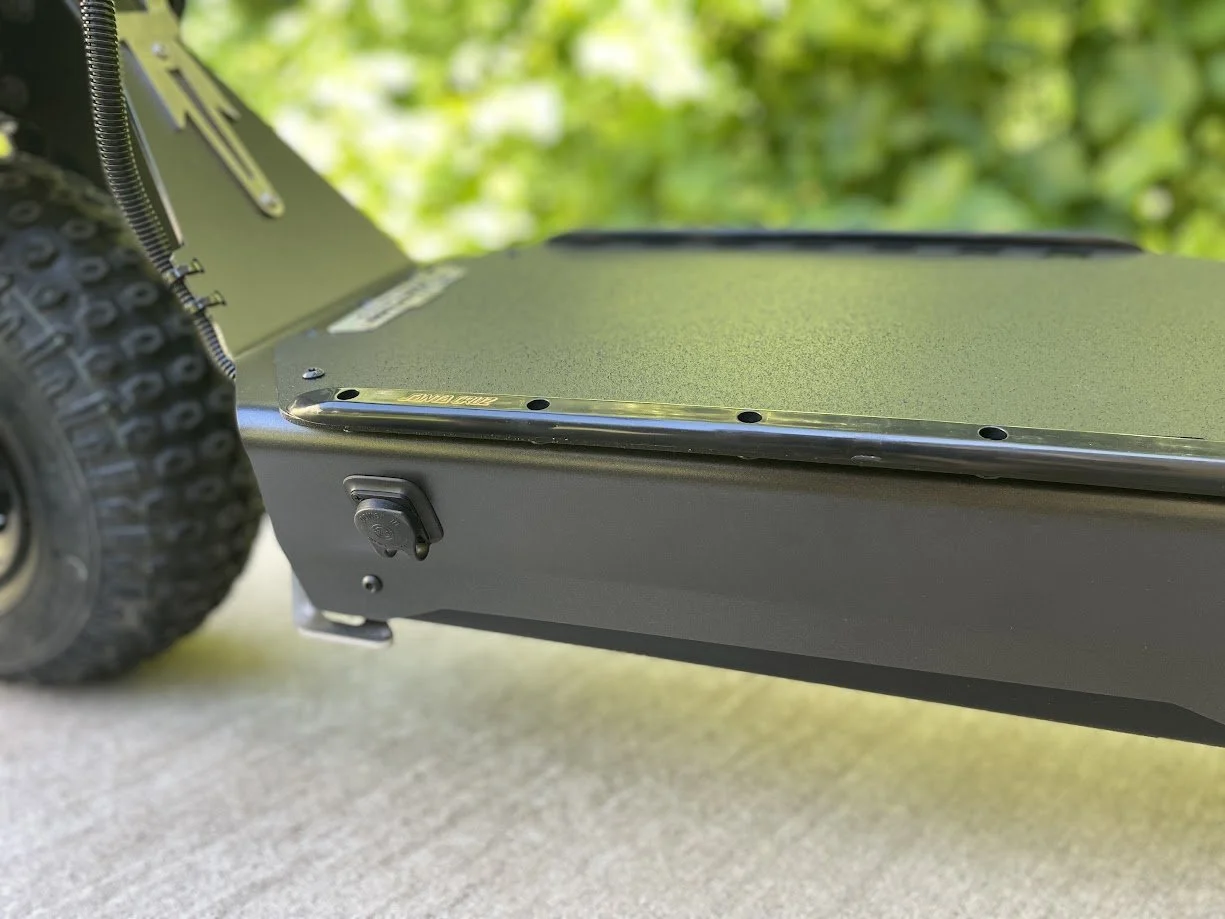

TURBO RAILS & SUPERGRIP SURFACE

The Turbo Rails function as both reference points and protection, while the Supergrip deck surface keeps your feet firmly planted. A match made in shoe heaven.

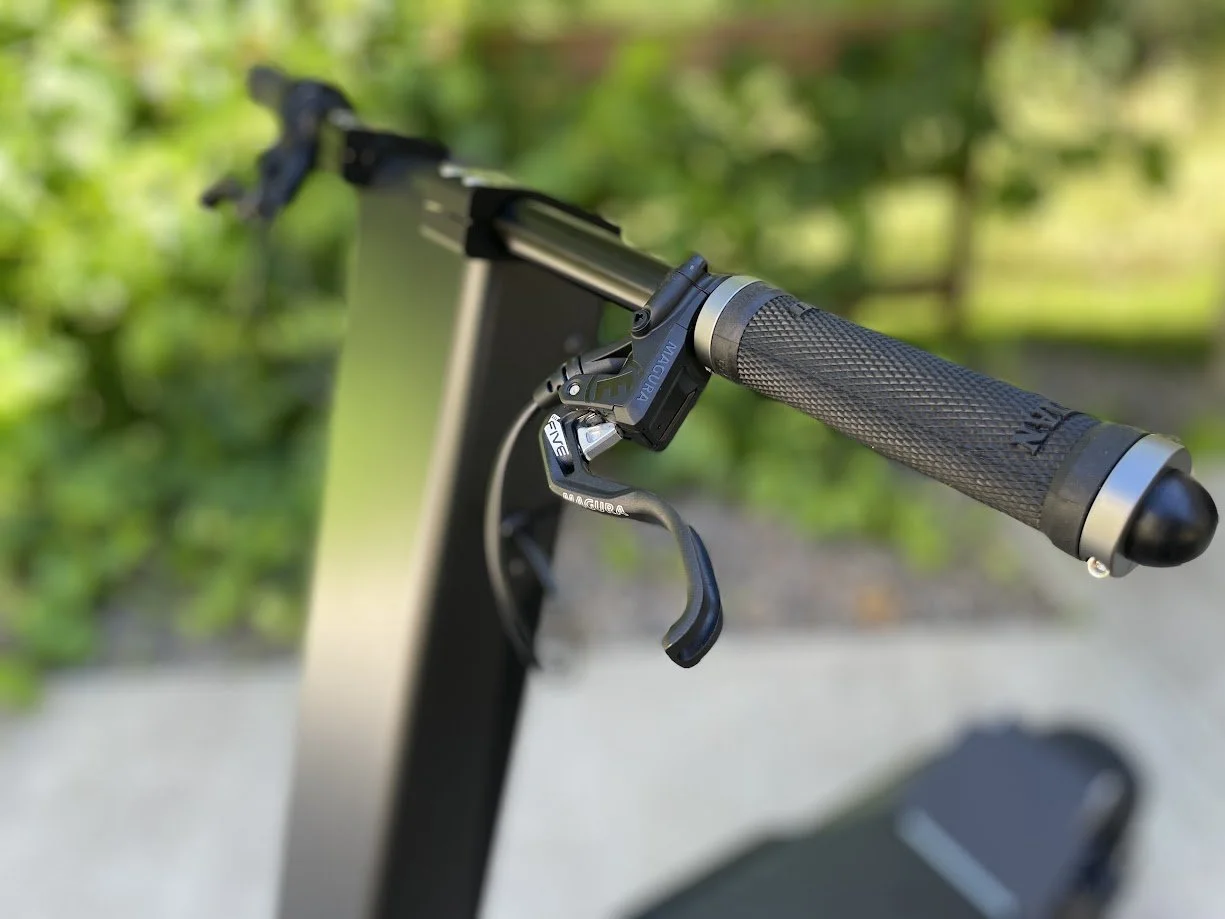

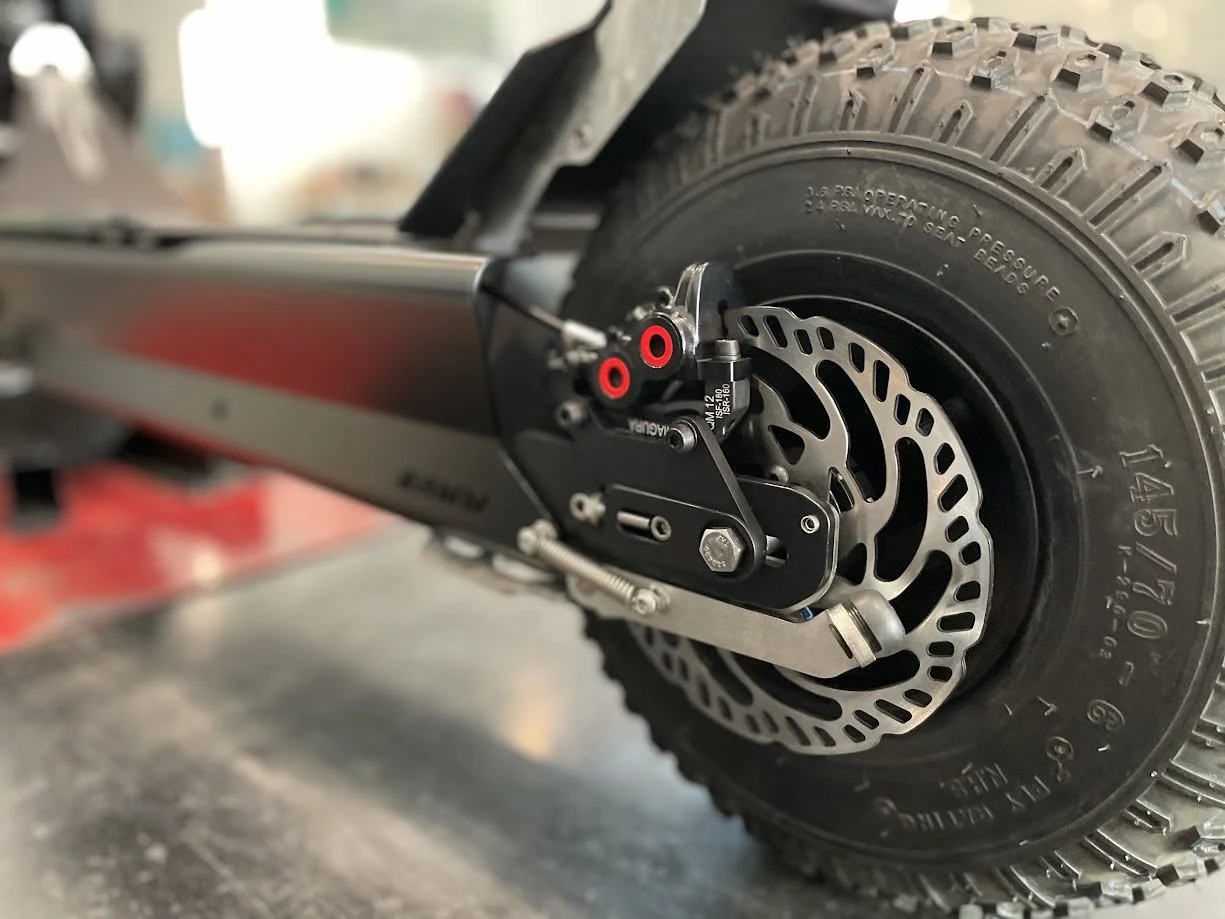

MAGURA MT5 HC BRAKES

Magura builds some of the best calipers in the business, and the MT5 is no exception. These 4-piston brakes provide superior braking power and excellent modulation.
